B59950C0120A070

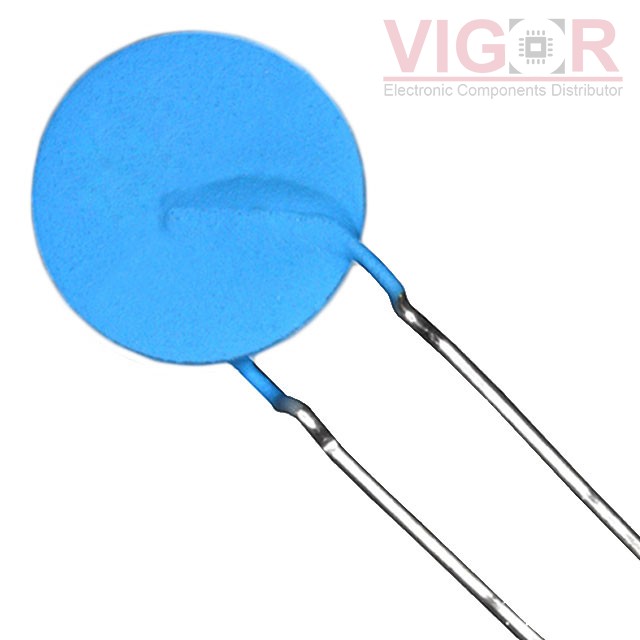

Product image
Product thumb
Part No :

B59950C0120A070

Manufacturer
TDK EPCOS
VIGOR # :

1968593

Description
PTC RESET FUSE 80V 320MA RADIAL
Catalog
PTC Resettable Fuses
DataSheet
B59950C0120A070 PDF
Country of origin
-
Date code
-
ads
B59950C0120A070 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Type:Ceramic
Voltage - Max:80V
Current - Max:5.5 A
Current - Hold (Ih) (Max):320 mA
Current - Trip (It):640 mA
Time to Trip:-
Resistance - Initial (Ri) (Min):-
Resistance - Post Trip (R1) (Max):-
Resistance - 25°C (Typ):3.7 Ohms
Operating Temperature:-40°C ~ 125°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.532" Dia x 0.138" T (13.50mm x 3.50mm)
Height - Seated (Max):0.669" (17.00mm)
Thickness (Max):-
Lead Spacing:0.197" (5.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 800
Shipped from
HK warehouse
Expected Shipping Date
Jan 12 - Jan 16 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.63 $1.63
5 $1.55 $7.74
10 $1.47 $14.71
50 $1.19 $59.36
100 $1.01 $100.66
250 $0.98 $245.20
500 $0.83 $412.96
1000 $0.74 $735.59
5000 $0.65 $3 226.25

Current price of B59950C0120A070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
