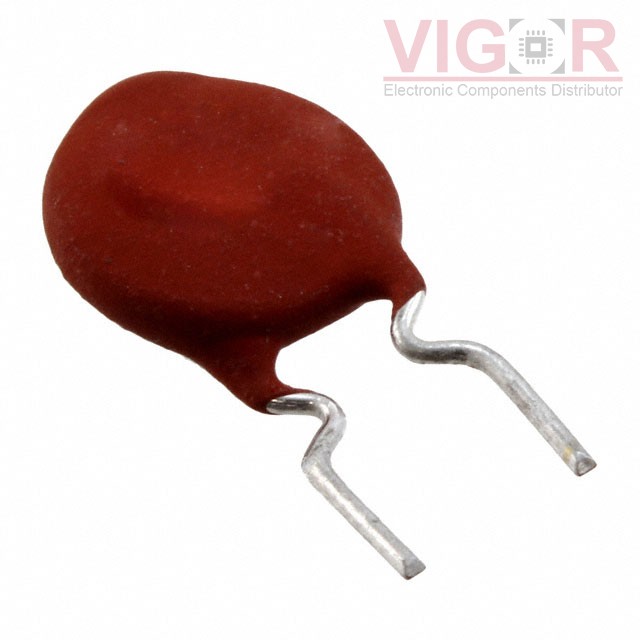

PTGL09AS7R6K6B51A0

Part No :: PTGL09AS7R6K6B51A0

Manufacturer: TOKO / Murata

VIGOR # :: 1968635

Description: PTC RESET FUSE 140V 287MA RADIAL

Catalog: PTC Resettable Fuses

DataSheet: PTGL09AS7R6K6B51A0 PDF

Country of origin: -

Date code: -

PTGL09AS7R6K6B51A0 Specifications

Type	Description
Series:	POSISTOR®, PTGL
Package:	Bulk
Part Status:	Not For New Designs
Type:	Ceramic
Voltage - Max:	140V
Current - Max:	2.2 A
Current - Hold (Ih) (Max):	287 mA
Current - Trip (It):	382 mA
Time to Trip:	-
Resistance - Initial (Ri) (Min):	-
Resistance - Post Trip (R1) (Max):	-
Resistance - 25°C (Typ):	7.6 Ohms
Operating Temperature:	-30°C ~ 85°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.366" Dia x 0.177" T (9.30mm x 4.50mm)
Height - Seated (Max):	0.563" (14.30mm)
Thickness (Max):	-
Lead Spacing:	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 05 - May 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.6343~~	~~$0.63~~
1500	~~$0.6179~~	~~$926.90~~

Current price of PTGL09AS7R6K6B51A0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
