SMD0805B050TF

SMD0805B050TF

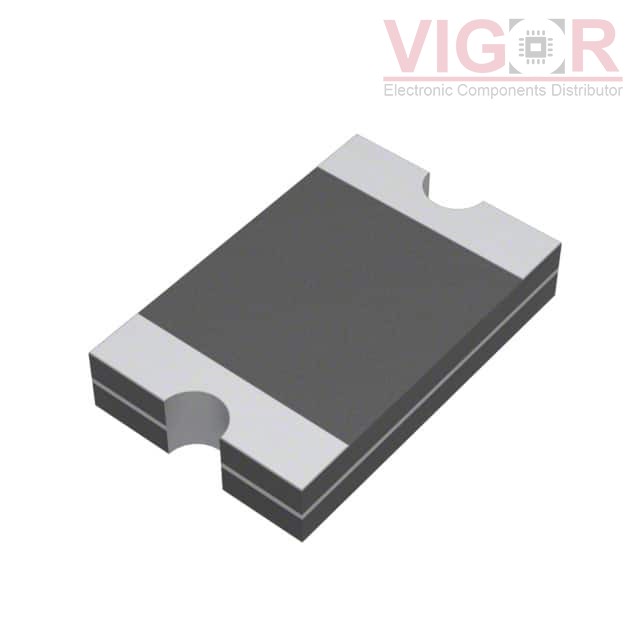

Image is for reference,
please contact us to get the real picture

Part No :

SMD0805B050TF

Manufacturer
Yageo
Description
PPTC SMD 0805, 6V 0.5A, REEL 7"
Catalog
PTC Resettable Fuses
Shipped from
HK warehouse
Expected Shipping Date
Nov 11 - Nov 15 2025
DataSheet
SMD0805B050TF PDF
Availability
0 pieces
Unit Price
$0.12000

Current price of SMD0805B050TF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMD0805B050TF Specifications
Type Description
Series:SMD0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Polymeric
Voltage - Max:6V
Current - Max:100 A
Current - Hold (Ih) (Max):500 mA
Current - Trip (It):1 A
Time to Trip:100 ms
Resistance - Initial (Ri) (Min):150 mOhms
Resistance - Post Trip (R1) (Max):850 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric), Concave
Size / Dimension:0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max):-
Thickness (Max):0.049" (1.25mm)
Lead Spacing:-
