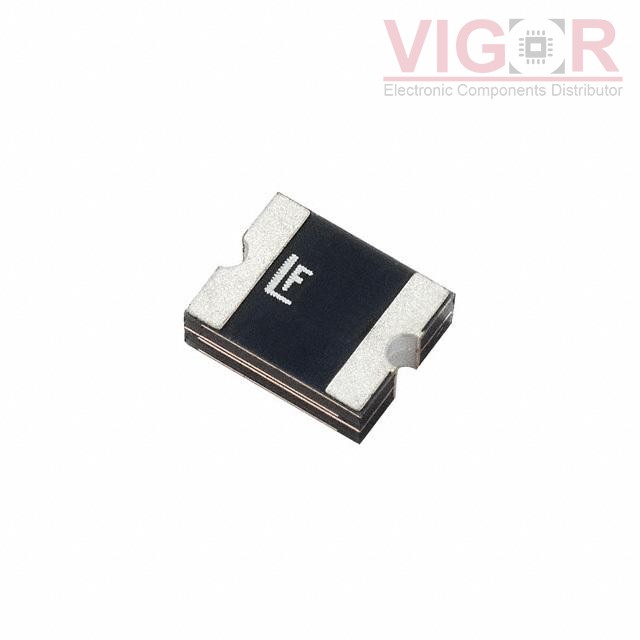

2016L500DR

Part No :: 2016L500DR

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 1969018

Description: PTC RESET FUSE 6V 5A 2016

Catalog: PTC Resettable Fuses

DataSheet: 2016L500DR PDF

Country of origin: -

Date code: -

2016L500DR Specifications

Type	Description
Series:	POLY-FUSE®, 2016L
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	100 A
Current - Hold (Ih) (Max):	5 A
Current - Trip (It):	10 A
Time to Trip:	2 s
Resistance - Initial (Ri) (Min):	5 mOhms
Resistance - Post Trip (R1) (Max):	25 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	2016 (5041 Metric), Concave
Size / Dimension:	0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max):	-
Thickness (Max):	0.063" (1.60mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 97966000

Shipped from

HK warehouse

Expected Shipping Date

May 06 - May 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8800~~	~~$0.88~~
1500	~~$0.3830~~	~~$574.44~~
3000	~~$0.3693~~	~~$1 107.84~~
7500	~~$0.3556~~	~~$2 667.00~~
10500	~~$0.3419~~	~~$3 590.27~~

Current price of 2016L500DR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

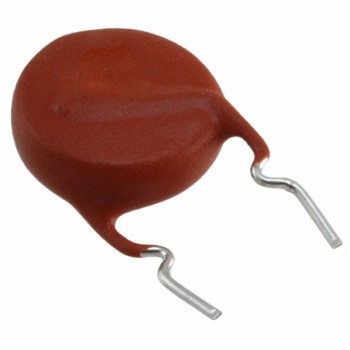

PTGL10ARR27M1B51B0
