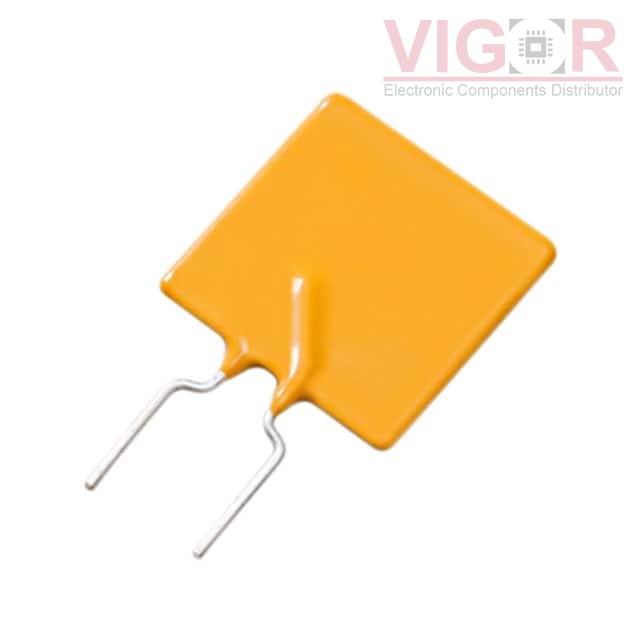

AHRF1000

Part No :: AHRF1000

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 16V 10A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: AHRF1000 PDF

Availability: 329 pieces

Unit Price: ~~$1.32000~~

Current price of AHRF1000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AHRF1000 Specifications

Type	Description
Series:	PolySwitch®, AHRF
Package:	Bag
Part Status:	Active
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	10 A
Current - Trip (It):	20.5 A
Time to Trip:	10.5 s
Resistance - Initial (Ri) (Min):	5.1 mOhms
Resistance - Post Trip (R1) (Max):	15 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max):	1.043" (26.50mm)
Thickness (Max):	-
Lead Spacing:	0.400" (10.15mm)
