AHRL1200

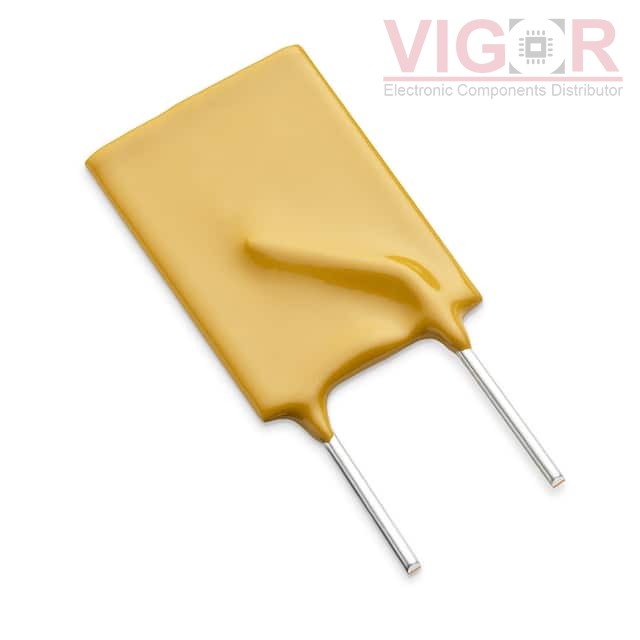

Product image
Product thumb
Part No :

AHRL1200

Manufacturer
Wickmann / Littelfuse
VIGOR # :

1969725

Description
PTC RESET FUSE 12A 16V RAD
Catalog
PTC Resettable Fuses
DataSheet
AHRL1200 PDF
Country of origin
-
Date code
-
ads
AHRL1200 Specifications
Type Description
Series:PolySwitch®, AHRL
Package:Bulk
Part Status:Active
Type:Polymeric
Voltage - Max:16V
Current - Max:100 A
Current - Hold (Ih) (Max):12 A
Current - Trip (It):24 A
Time to Trip:12.5 s
Resistance - Initial (Ri) (Min):3.5 mOhms
Resistance - Post Trip (R1) (Max):5.8 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.685" L x 0.142" W (17.40mm x 3.60mm)
Height - Seated (Max):0.921" (23.40mm)
Thickness (Max):-
Lead Spacing:0.400" (10.15mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 29 - Feb 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.65 $1.65

Current price of AHRL1200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
