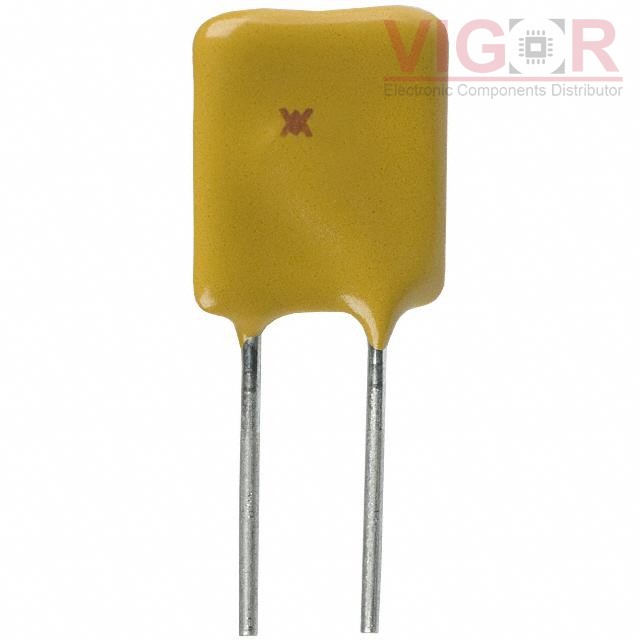

RHEF900-AP

Part No :: RHEF900-AP

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505491

Description: PTC RESET FUSE 16V 9A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: RHEF900-AP PDF

Country of origin: -

Date code: -

RHEF900-AP Specifications

Type	Description
Series:	PolySwitch®, RHEF
Package:	Tape & Box (TB)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	9 A
Current - Trip (It):	16.5 A
Time to Trip:	10 s
Resistance - Initial (Ri) (Min):	7.4 mOhms
Resistance - Post Trip (R1) (Max):	17 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max):	1.012" (25.70mm)
Thickness (Max):	-
Lead Spacing:	0.199" (5.05mm)
