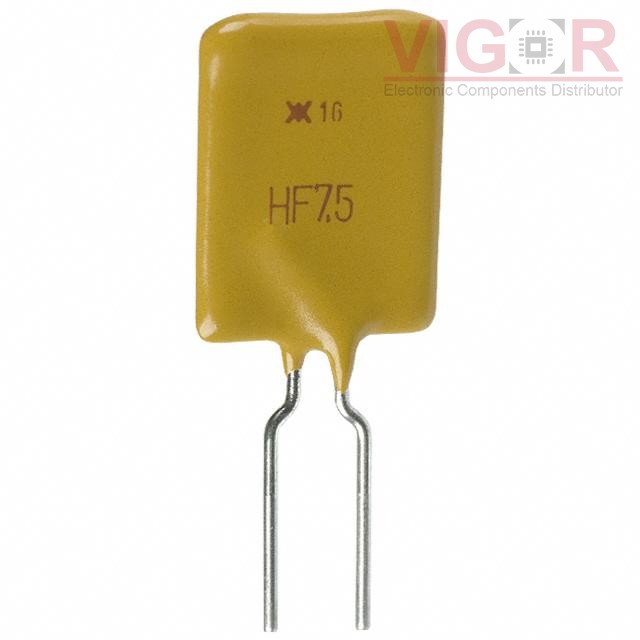

RHEF750-1

Part No :: RHEF750-1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505531

Description: PTC RESET FUSE 16V 7.5A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: RHEF750-1 PDF

Country of origin: -

Date code: -

RHEF750-1 Specifications

Type	Description
Series:	PolySwitch®, RHEF
Package:	Bulk
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	7.5 A
Current - Trip (It):	13.1 A
Time to Trip:	7 s
Resistance - Initial (Ri) (Min):	9.4 mOhms
Resistance - Post Trip (R1) (Max):	22 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max):	0.925" (23.50mm)
Thickness (Max):	-
Lead Spacing:	0.199" (5.05mm)
