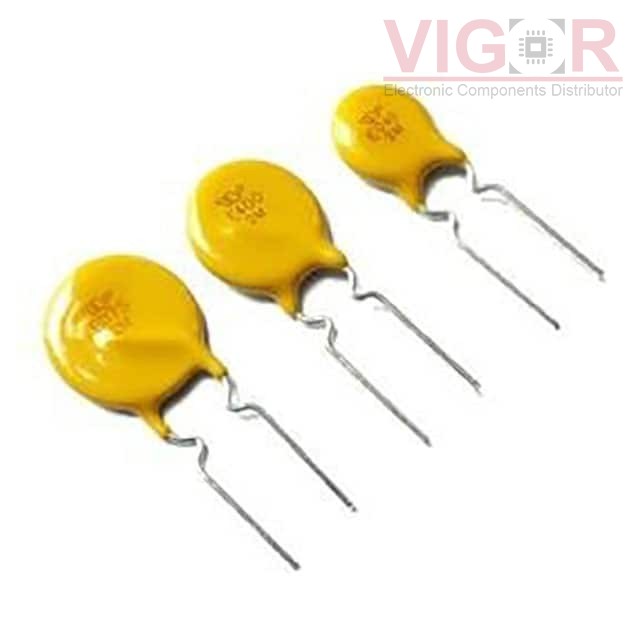

AHS050-SM

Part No :: AHS050-SM

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 4505585

Description: PTC RESET FUSE 72V 500MA RADIAL

Catalog: PTC Resettable Fuses

DataSheet: AHS050-SM PDF

Country of origin: -

Date code: -

AHS050-SM Specifications

Type	Description
Series:	PolySwitch®, RXEF
Package:	Bag
Part Status:	Active
Type:	Polymeric
Voltage - Max:	72V
Current - Max:	40 A
Current - Hold (Ih) (Max):	500 mA
Current - Trip (It):	1 A
Time to Trip:	4 s
Resistance - Initial (Ri) (Min):	500 mOhms
Resistance - Post Trip (R1) (Max):	1.17 Ohms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.311" Dia x 0.118" T (7.90mm x 3.00mm)
Height - Seated (Max):	0.539" (13.70mm)
Thickness (Max):	-
Lead Spacing:	0.199" (5.05mm)
