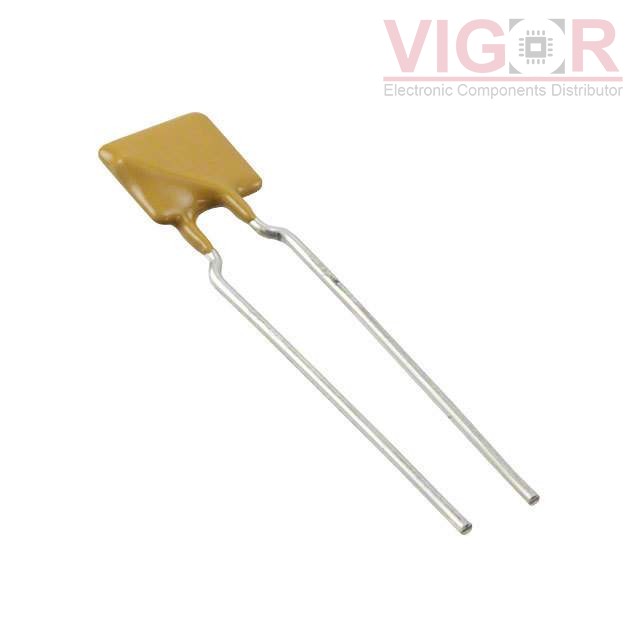

AGRF800S-2

Part No :: AGRF800S-2

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505616

Description: PTC RESET FUSE 16V 8A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: AGRF800S-2 PDF

Country of origin: -

Date code: -

AGRF800S-2 Specifications

Type	Description
Series:	PolySwitch®, AGRF
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	8 A
Current - Trip (It):	15 A
Time to Trip:	5.5 s
Resistance - Initial (Ri) (Min):	4.9 mOhms
Resistance - Post Trip (R1) (Max):	17.5 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max):	0.823" (20.90mm)
Thickness (Max):	-
Lead Spacing:	0.200" (5.08mm)
