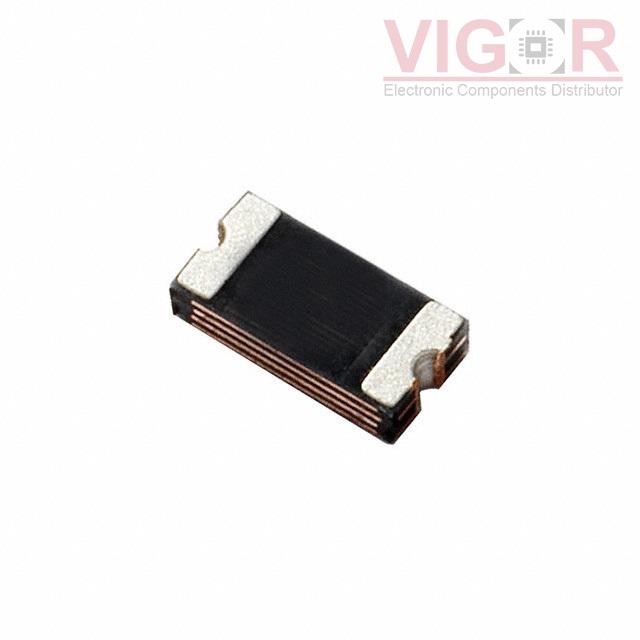

1206L100WR

Part No :: 1206L100WR

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505640

Description: PTC RESET FUSE 6V 1A 1206

Catalog: PTC Resettable Fuses

DataSheet: 1206L100WR PDF

Country of origin: -

Date code: -

1206L100WR Specifications

Type	Description
Series:	POLY-FUSE®, 1206L
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	100 A
Current - Hold (Ih) (Max):	1 A
Current - Trip (It):	1.8 A
Time to Trip:	300 ms
Resistance - Initial (Ri) (Min):	55 mOhms
Resistance - Post Trip (R1) (Max):	210 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave
Size / Dimension:	0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max):	-
Thickness (Max):	0.030" (0.75mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Sep 06 - Sep 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 1206L100WR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

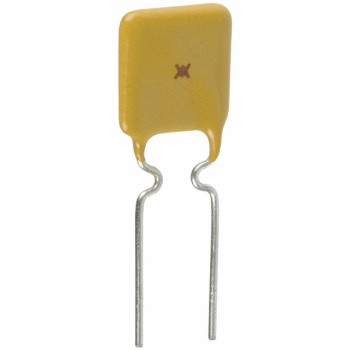

RUSB160

PTC RESET FUSE 16V 1.6A RADIAL

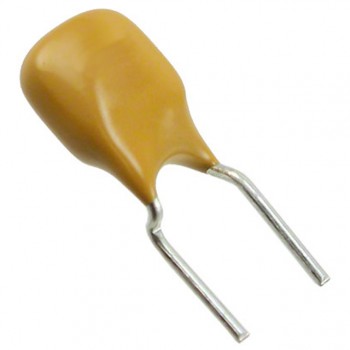

250R120-R1ZR
