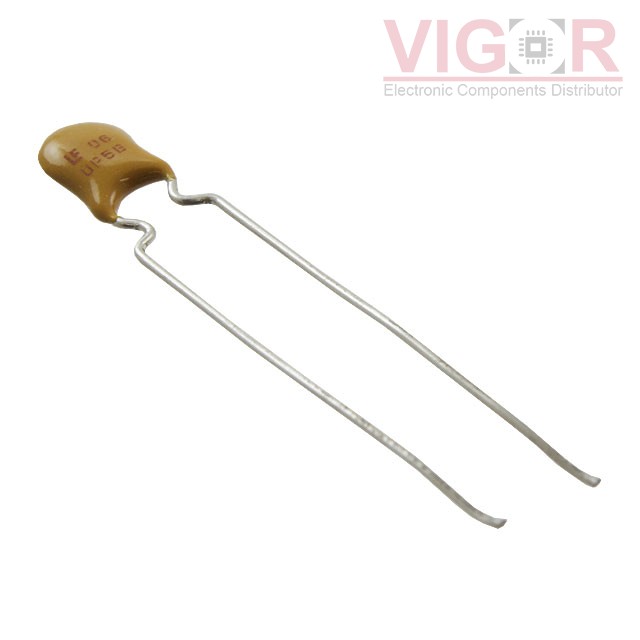

06R120BPR

Part No :: 06R120BPR

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505678

Description: PTC RESET FUSE 6V 1.2A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: 06R120BPR PDF

Country of origin: -

Date code: -

06R120BPR Specifications

Type	Description
Series:	POLY-FUSE®, USBR
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	40 A
Current - Hold (Ih) (Max):	1.2 A
Current - Trip (It):	2 A
Time to Trip:	500 ms
Resistance - Initial (Ri) (Min):	65 mOhms
Resistance - Post Trip (R1) (Max):	140 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.272" Dia x 0.118" T (6.90mm x 3.00mm)
Height - Seated (Max):	0.449" (11.40mm)
Thickness (Max):	-
Lead Spacing:	0.201" (5.10mm)
