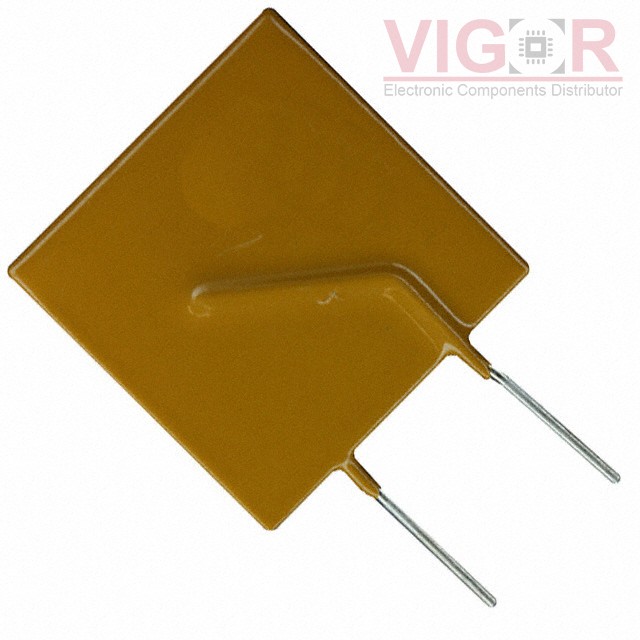

MF-R1100-AP-99

Part No :: MF-R1100-AP-99

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4505784

Description: PTC RESET FUSE 16V 11A RADIAL

Catalog: PTC Resettable Fuses

DataSheet: MF-R1100-AP-99 PDF

Country of origin: -

Date code: -

MF-R1100-AP-99 Specifications

Type	Description
Series:	Multifuse®, MF-R
Package:	Tape & Box (TB)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	11 A
Current - Trip (It):	22 A
Time to Trip:	20 s
Resistance - Initial (Ri) (Min):	3 mOhms
Resistance - Post Trip (R1) (Max):	14 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max):	1.295" (32.90mm)
Thickness (Max):	-
Lead Spacing:	0.402" (10.20mm)
