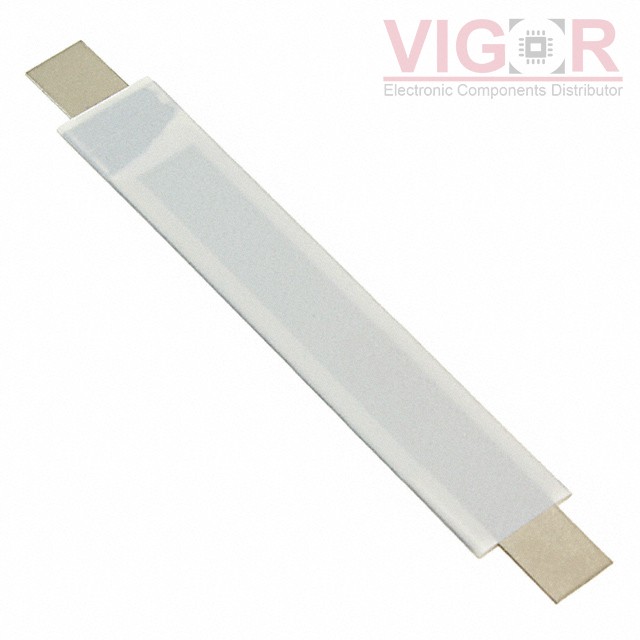

LR4-1300F

Part No :: LR4-1300F

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4505825

Description: PTC RESET FUSE 20V 13A STRAP

Catalog: PTC Resettable Fuses

DataSheet: LR4-1300F PDF

Country of origin: -

Date code: -

LR4-1300F Specifications

Type	Description
Series:	PolySwitch®, LR4
Package:	Bag
Part Status:	Active
Type:	Polymeric
Voltage - Max:	20V
Current - Max:	100 A
Current - Hold (Ih) (Max):	13 A
Current - Trip (It):	21.2 A
Time to Trip:	10 s
Resistance - Initial (Ri) (Min):	3.5 mOhms
Resistance - Post Trip (R1) (Max):	9 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	User Defined
Package / Case:	Strap
Size / Dimension:	2.520" L x 0.382" W (64.00mm x 9.70mm)
Height - Seated (Max):	-
Thickness (Max):	-
Lead Spacing:	-
