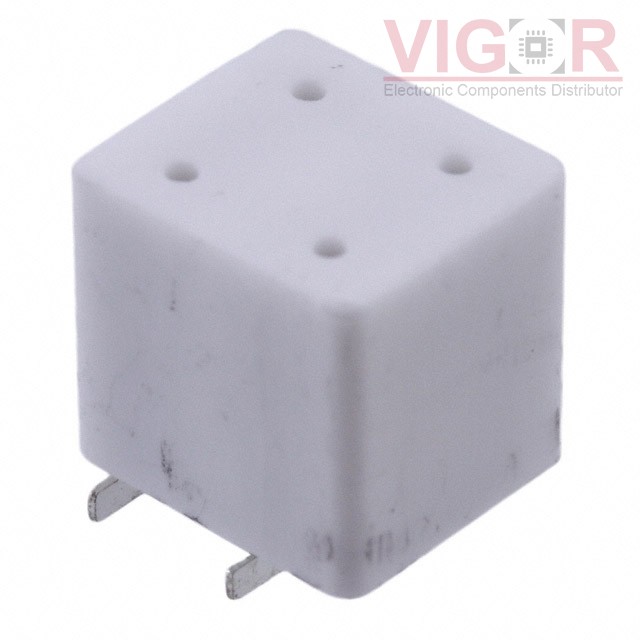

CMF-SD50-10-2

Part No :: CMF-SD50-10-2

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4505866

Description: PTC RESET FUSE 230V 90MA 4SMD

Catalog: PTC Resettable Fuses

DataSheet: CMF-SD50-10-2 PDF

Country of origin: -

Date code: -

CMF-SD50-10-2 Specifications

Type	Description
Series:	CMF-SD
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Ceramic
Voltage - Max:	230V (600V Int)
Current - Max:	3 A
Current - Hold (Ih) (Max):	90 mA
Current - Trip (It):	190 mA
Time to Trip:	100 ms
Resistance - Initial (Ri) (Min):	-
Resistance - Post Trip (R1) (Max):	-
Resistance - 25°C (Typ):	50 Ohms
Operating Temperature:	-
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD Cube
Size / Dimension:	0.402" L x 0.354" W (10.20mm x 9.00mm)
Height - Seated (Max):	-
Thickness (Max):	0.425" (10.80mm)
Lead Spacing:	-
