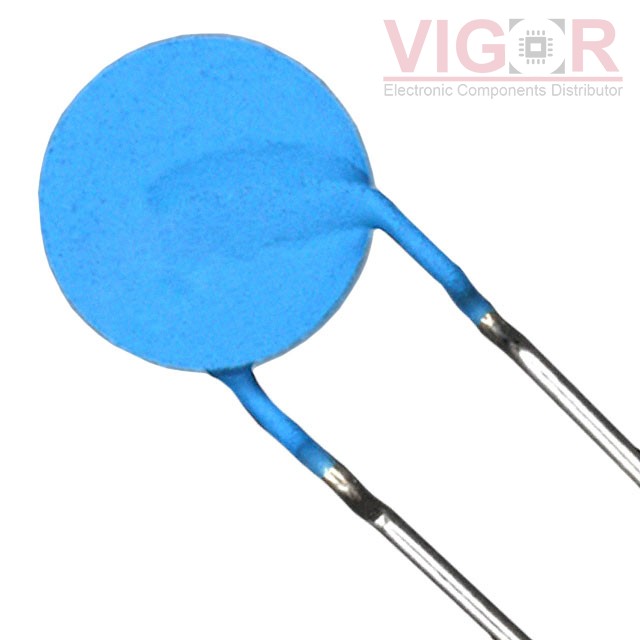

B59940C0120A054

Part No :: B59940C0120A054

Manufacturer: TDK EPCOS

VIGOR # :: 4505949

Description: PTC RESET FUSE 80V 450MA RADIAL

Catalog: PTC Resettable Fuses

DataSheet: B59940C0120A054 PDF

Country of origin: -

Date code: -

B59940C0120A054 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Ceramic
Voltage - Max:	80V
Current - Max:	8 A
Current - Hold (Ih) (Max):	450 mA
Current - Trip (It):	900 mA
Time to Trip:	-
Resistance - Initial (Ri) (Min):	-
Resistance - Post Trip (R1) (Max):	-
Resistance - 25°C (Typ):	2.3 Ohms
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.689" Dia x 0.138" T (17.50mm x 3.50mm)
Height - Seated (Max):	0.827" (21.00mm)
Thickness (Max):	-
Lead Spacing:	0.197" (5.00mm)
