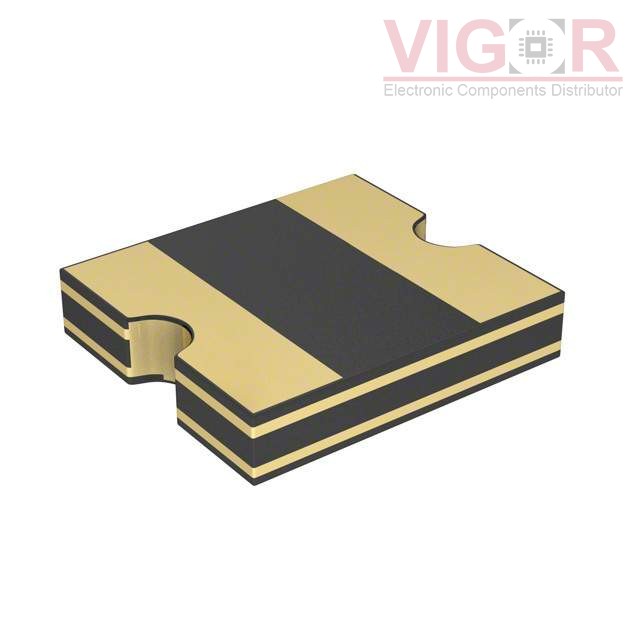

MF-SMDF100-2

Part No :: MF-SMDF100-2

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4506051

Description: PTC RESET FUSE 15V 1.1A 2018

Catalog: PTC Resettable Fuses

DataSheet: MF-SMDF100-2 PDF

Country of origin: -

Date code: -

MF-SMDF100-2 Specifications

Type	Description
Series:	Multifuse®, MF-SMDF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	15V
Current - Max:	40 A
Current - Hold (Ih) (Max):	1.1 A
Current - Trip (It):	2.2 A
Time to Trip:	500 ms
Resistance - Initial (Ri) (Min):	100 mOhms
Resistance - Post Trip (R1) (Max):	390 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	2018 (5045 Metric), Concave
Size / Dimension:	0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max):	-
Thickness (Max):	0.049" (1.25mm)
Lead Spacing:	-
