ESD5Z12

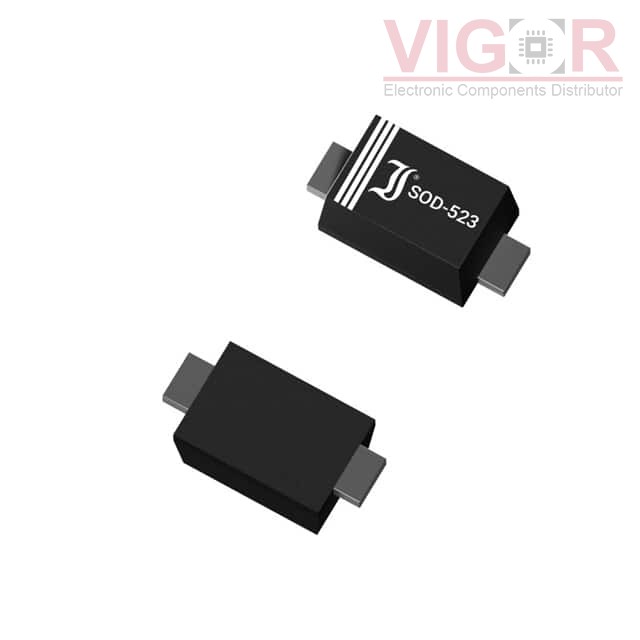

Image is for reference,
please contact us to get the real picture

Part No :: ESD5Z12

Manufacturer: Diotec Semiconductor

Description: ESD SOD-523 12V 240W UNI

Catalog: TVS - Diodes

DataSheet: ESD5Z12 PDF

Availability: 0 pieces

Unit Price: ~~$0.04260~~

Current price of ESD5Z12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD5Z12 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	12V
Voltage - Breakdown (Min):	14.1V
Voltage - Clamping (Max) @ Ipp:	17V
Current - Peak Pulse (10/1000µs):	5A (8/20µs)
Power - Peak Pulse:	240W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	55pF @ 1MHz
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523
Supplier Device Package:	SOD-523
