PTVS10-076C-M

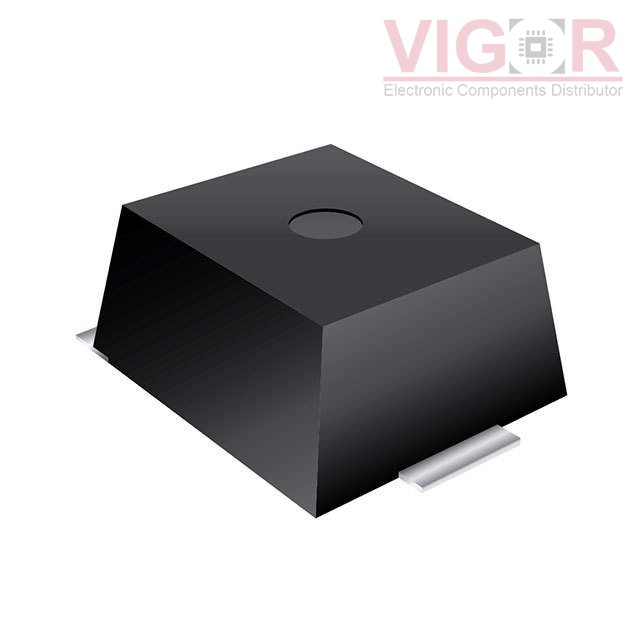

Image is for reference,
please contact us to get the real picture

Part No :: PTVS10-076C-M

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE 76V 135V

Catalog: TVS - Diodes

DataSheet: PTVS10-076C-M PDF

Availability: 15 pieces

Unit Price: ~~$23.14000~~

Current price of PTVS10-076C-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PTVS10-076C-M Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	76V
Voltage - Breakdown (Min):	85V
Voltage - Clamping (Max) @ Ipp:	135V
Current - Peak Pulse (10/1000µs):	10000A (10kA) (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	5500pF @ 10kHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	2-SMD, Flat Lead
Supplier Device Package:	-
