SP3022-01WTG

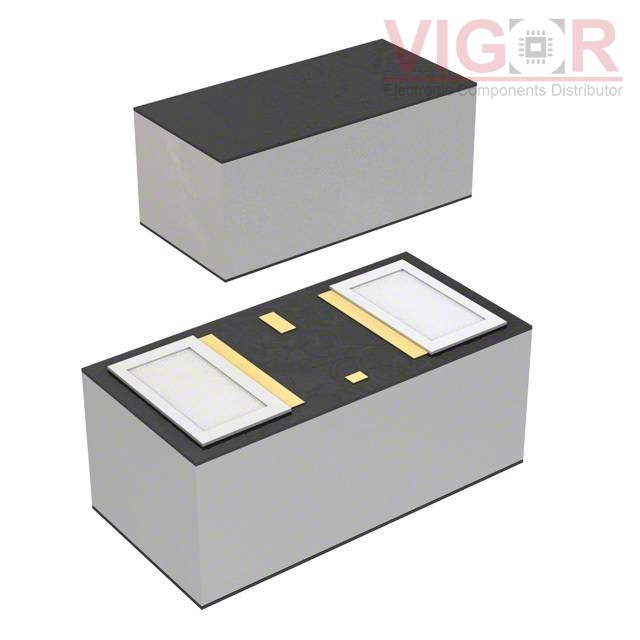

Image is for reference,
please contact us to get the real picture

Part No :: SP3022-01WTG

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 5.3V 12V 0201 FLIPCHIP

Catalog: TVS - Diodes

DataSheet: SP3022-01WTG PDF

Availability: 64071 pieces

Unit Price: ~~$0.54000~~

Current price of SP3022-01WTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP3022-01WTG Specifications

Type	Description
Series:	Automotive, AEC-Q101, SP3022, SPA®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5.3V (Max)
Voltage - Breakdown (Min):	6.8V
Voltage - Clamping (Max) @ Ipp:	12V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	20W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	2-XFDFN, FCDFN
Supplier Device Package:	0201 FlipChip
