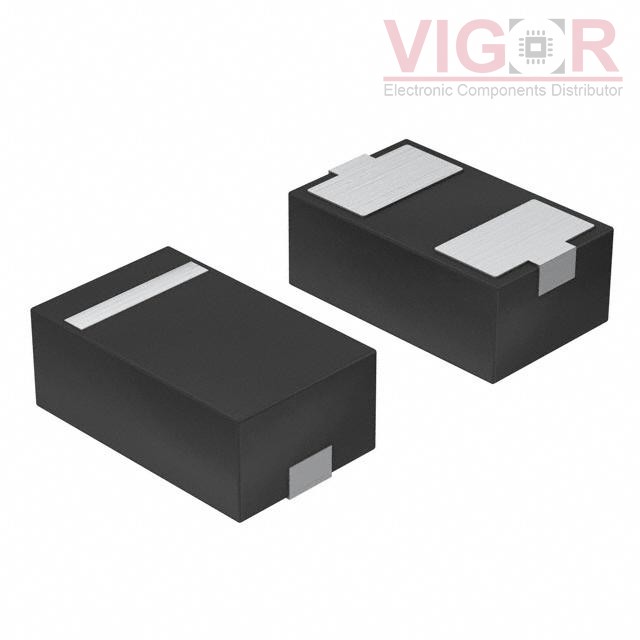

VCUT0714A-HD1-GS08

Part No :: VCUT0714A-HD1-GS08

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 7V/14V 17V/30V LLP1006

Catalog: TVS - Diodes

DataSheet: VCUT0714A-HD1-GS08 PDF

Availability: 0 pieces

Current price of VCUT0714A-HD1-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VCUT0714A-HD1-GS08 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	7V, 14V
Voltage - Breakdown (Min):	7.3V, 14.5V
Voltage - Clamping (Max) @ Ipp:	17V, 30V
Current - Peak Pulse (10/1000µs):	5A, 2A (8/20µs)
Power - Peak Pulse:	54W, 63W
Power Line Protection:	No
Applications:	RS-485
Capacitance @ Frequency:	8pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOD-882
Supplier Device Package:	LLP1006-2L
