ESDLC0524DFN10-TP

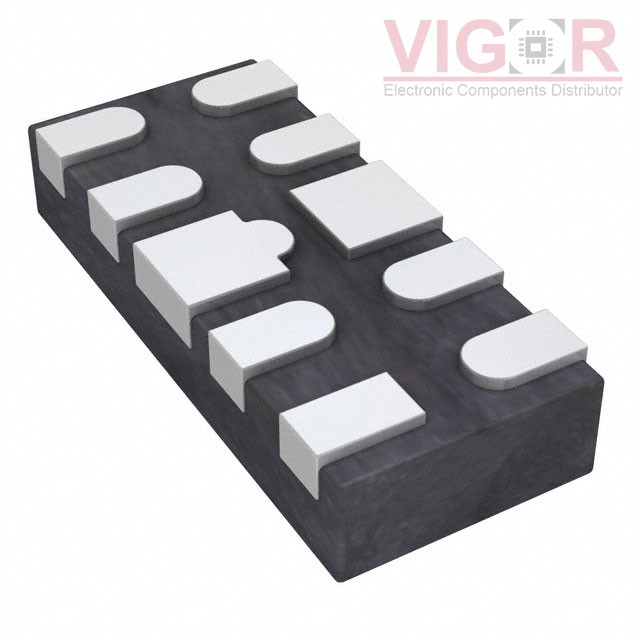

Product image
Product thumb
Part No :

ESDLC0524DFN10-TP

Manufacturer
Micro Commercial Components (MCC)
VIGOR # :

1938433

Description
TVS DIODE 5V 28V 10DFN
Catalog
TVS - Diodes
DataSheet
ESDLC0524DFN10-TP PDF
Country of origin
-
Date code
-
ads
ESDLC0524DFN10-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Steering (Rail to Rail)
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):6.1V
Voltage - Clamping (Max) @ Ipp:28V
Current - Peak Pulse (10/1000µs):5A (8/20µs)
Power - Peak Pulse:150W
Power Line Protection:Yes
Applications:General Purpose
Capacitance @ Frequency:0.8pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:10-XFDFN
Supplier Device Package:10-DFN (2.5x1)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Sep 22 - Sep 26 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.4500 $0.45
3000 $0.0934 $280.35
6000 $0.0851 $510.60
15000 $0.0768 $1 151.25
30000 $0.0726 $2 177.40
75000 $0.0656 $4 921.50

Current price of ESDLC0524DFN10-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
