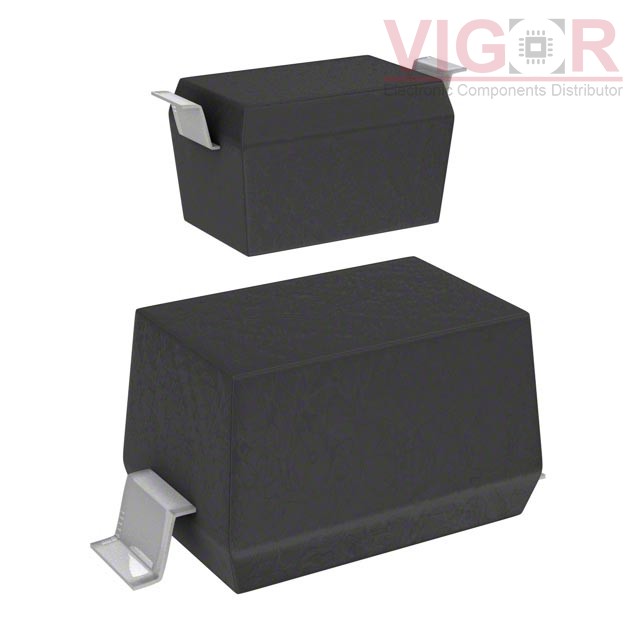

CPDH5V0P-HF

Part No :: CPDH5V0P-HF

Manufacturer: Comchip Technology

Description: TVS DIODE 5V 13V SOD523

Catalog: TVS - Diodes

DataSheet: CPDH5V0P-HF PDF

Availability: 8847 pieces

Current price of CPDH5V0P-HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPDH5V0P-HF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	5.6V
Voltage - Clamping (Max) @ Ipp:	13V
Current - Peak Pulse (10/1000µs):	3A (8/20µs)
Power - Peak Pulse:	39W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	3pF @ 1MHz
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523
Supplier Device Package:	SOD-523

Please confirm the specifications of the products when ordering.
