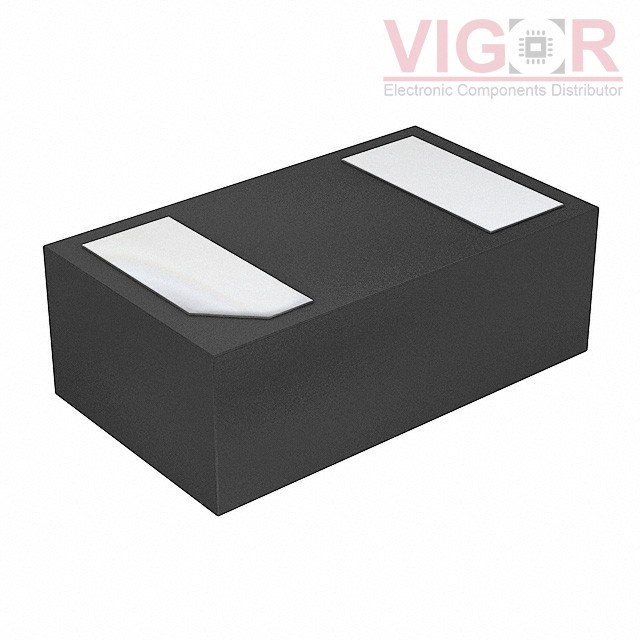

SP0402B-ELC-01ETG

Part No :: SP0402B-ELC-01ETG

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 7V 14V 0402/2DFN

Catalog: TVS - Diodes

DataSheet: SP0402B-ELC-01ETG PDF

Availability: 170000 pieces

Current price of SP0402B-ELC-01ETG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP0402B-ELC-01ETG Specifications

Type	Description
Series:	SPA®
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	7V
Voltage - Breakdown (Min):	9.6V (Typ)
Voltage - Clamping (Max) @ Ipp:	14V (Typ)
Current - Peak Pulse (10/1000µs):	2.5A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	0.15pF @ 1MHz
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	0402/2DFN (1x0.60)
