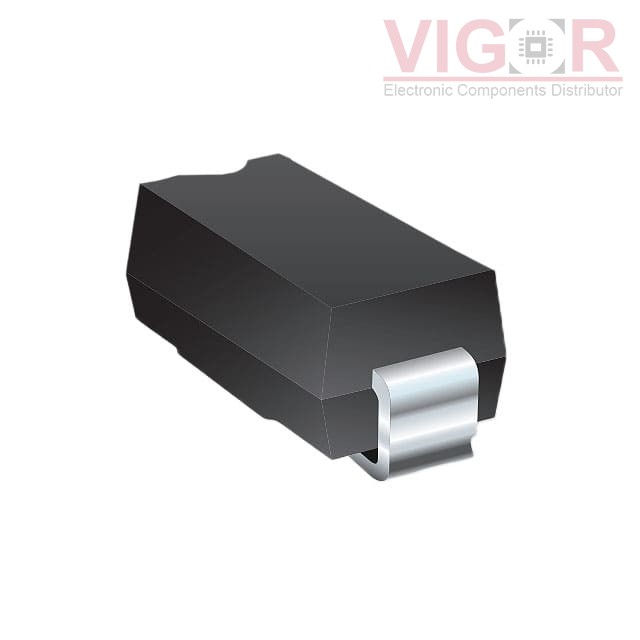

SMA6J70A-Q

Part No :: SMA6J70A-Q

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE SMA AECQ

Catalog: TVS - Diodes

DataSheet: SMA6J70A-Q PDF

Availability: 0 pieces

Current price of SMA6J70A-Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMA6J70A-Q Specifications

Type	Description
Series:	Automotive, AEC-Q101, SM6J-Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	70V
Voltage - Breakdown (Min):	77.8V
Voltage - Clamping (Max) @ Ipp:	113V
Current - Peak Pulse (10/1000µs):	5.3A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive, Telecom
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	DO-214AC (SMA)

Please confirm the specifications of the products when ordering.
