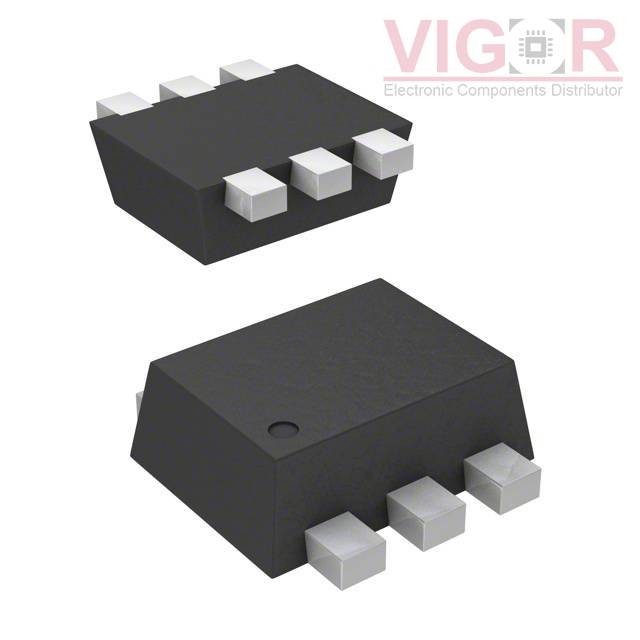

SP1001-05XTG

Part No :: SP1001-05XTG

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 5.5V 13V SOT563

Catalog: TVS - Diodes

DataSheet: SP1001-05XTG PDF

Availability: 1987 pieces

Current price of SP1001-05XTG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP1001-05XTG Specifications

Type	Description
Series:	SP1001, SPA®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	5
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5.5V (Max)
Voltage - Breakdown (Min):	7V
Voltage - Clamping (Max) @ Ipp:	13V
Current - Peak Pulse (10/1000µs):	2A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563

Please confirm the specifications of the products when ordering.
