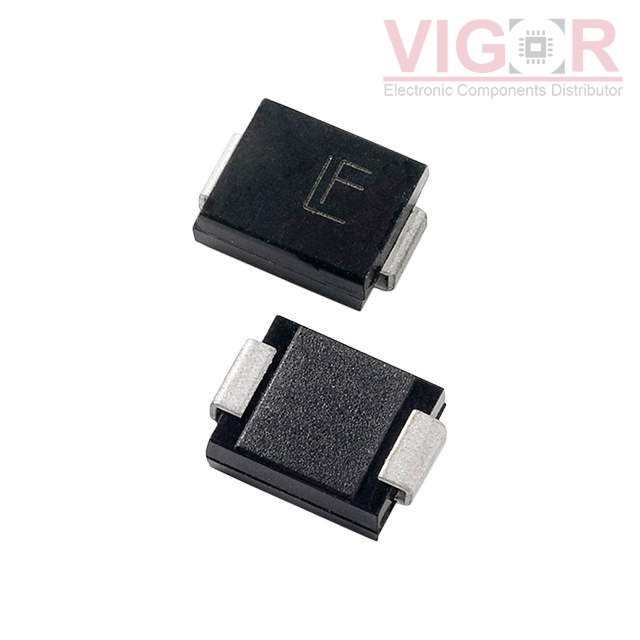

TPSMC16A

Part No :: TPSMC16A

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 13.6V 22.5V DO214AB

Catalog: TVS - Diodes

DataSheet: TPSMC16A PDF

Availability: 0 pieces

Current price of TPSMC16A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPSMC16A Specifications

Type	Description
Series:	Automotive, AEC-Q101, TPSMC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	13.6V
Voltage - Breakdown (Min):	15.2V
Voltage - Clamping (Max) @ Ipp:	22.5V
Current - Peak Pulse (10/1000µs):	67.6A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AB, SMC
Supplier Device Package:	DO-214AB (SMCJ)

Please confirm the specifications of the products when ordering.
