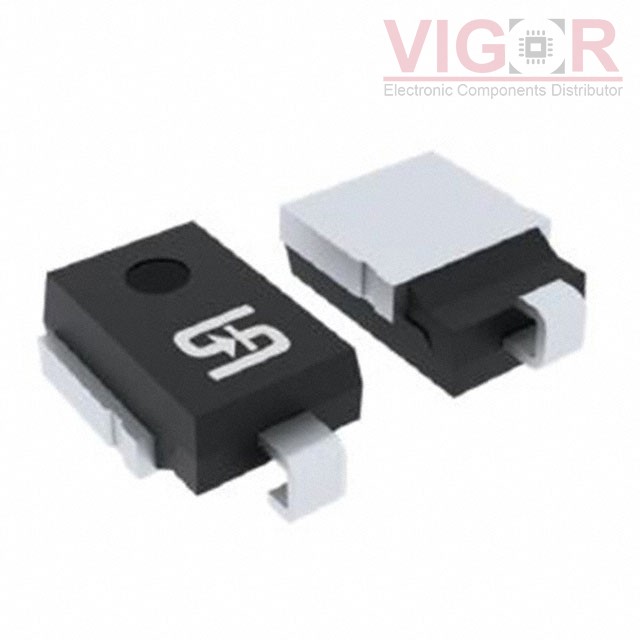

TLD5S20AH

Part No :: TLD5S20AH

Manufacturer: TSC (Taiwan Semiconductor)

Description: 3600W,10V-43V SURFACE MOUNT TRAN

Catalog: TVS - Diodes

DataSheet: TLD5S20AH PDF

Availability: 0 pieces

Current price of TLD5S20AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLD5S20AH Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	20V
Voltage - Breakdown (Min):	22.2V
Voltage - Clamping (Max) @ Ipp:	32.4V
Current - Peak Pulse (10/1000µs):	111A
Power - Peak Pulse:	2800W (2.8kW)
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-218AB
Supplier Device Package:	DO-218AB

Please confirm the specifications of the products when ordering.
