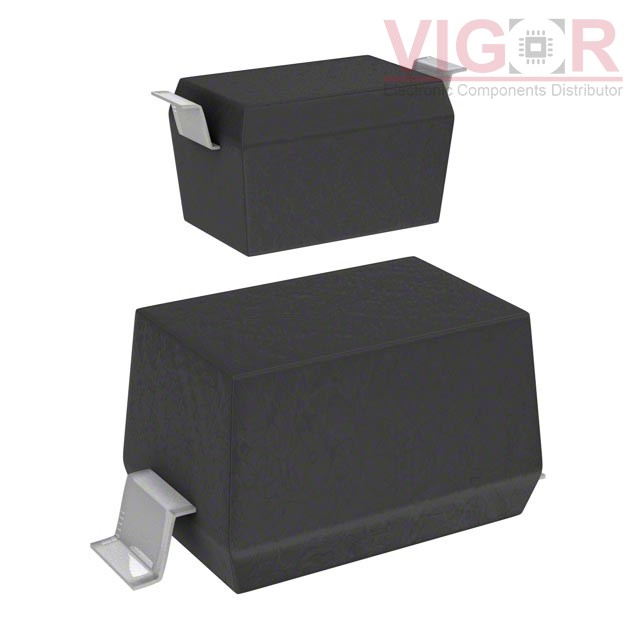

CPDH5V0U-HF

Part No :: CPDH5V0U-HF

Manufacturer: Comchip Technology

Description: TVS DIODE 5V 12.5V SOD523

Catalog: TVS - Diodes

DataSheet: CPDH5V0U-HF PDF

Availability: 0 pieces

Current price of CPDH5V0U-HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPDH5V0U-HF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	6V
Voltage - Clamping (Max) @ Ipp:	12.5V
Current - Peak Pulse (10/1000µs):	16A (8/20µs)
Power - Peak Pulse:	200W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	90pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-79, SOD-523
Supplier Device Package:	SOD-523
