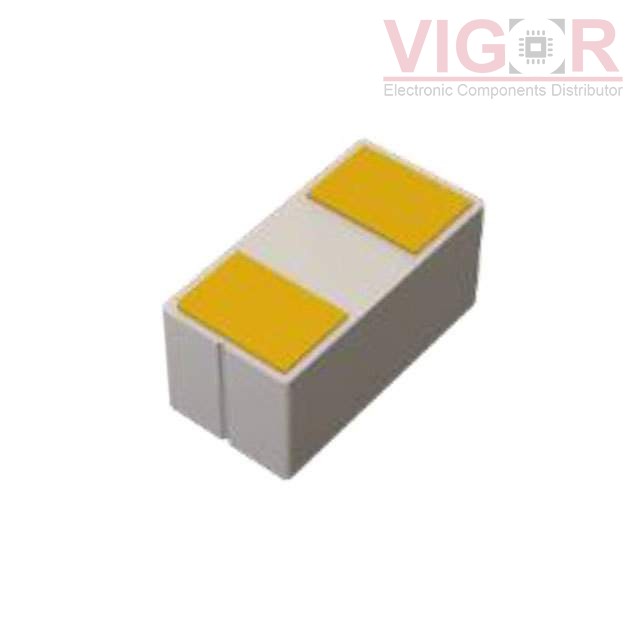

VS5V0BL1EST15R

Part No :: VS5V0BL1EST15R

Manufacturer: ROHM Semiconductor

Description: TVS DIODE 5V 18V DSN0603-2

Catalog: TVS - Diodes

DataSheet: VS5V0BL1EST15R PDF

Availability: 6805 pieces

Current price of VS5V0BL1EST15R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VS5V0BL1EST15R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	6V
Voltage - Clamping (Max) @ Ipp:	18V
Current - Peak Pulse (10/1000µs):	2A (8/20µs)
Power - Peak Pulse:	36W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	0.25pF @ 1MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	DSN0603-2, SOD-962, SMD0603
