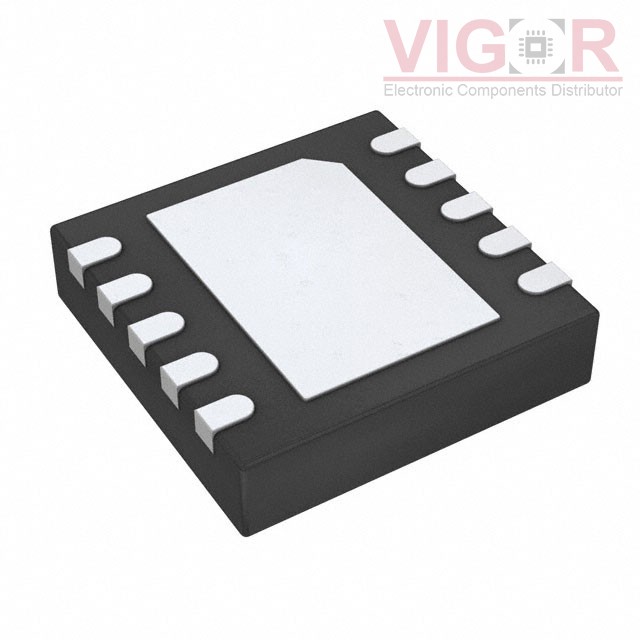

ESDLC3304P8-TP

Part No :: ESDLC3304P8-TP

Manufacturer: Micro Commercial Components (MCC)

Description: TVS DIODE 3.3V 20V DFN2626-10

Catalog: TVS - Diodes

DataSheet: ESDLC3304P8-TP PDF

Availability: 0 pieces

Current price of ESDLC3304P8-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESDLC3304P8-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	3.3V (Max)
Voltage - Breakdown (Min):	-
Voltage - Clamping (Max) @ Ipp:	20V
Current - Peak Pulse (10/1000µs):	25A (8/20µs)
Power - Peak Pulse:	450W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	3.8pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN Exposed Pad
Supplier Device Package:	DFN2626-10
