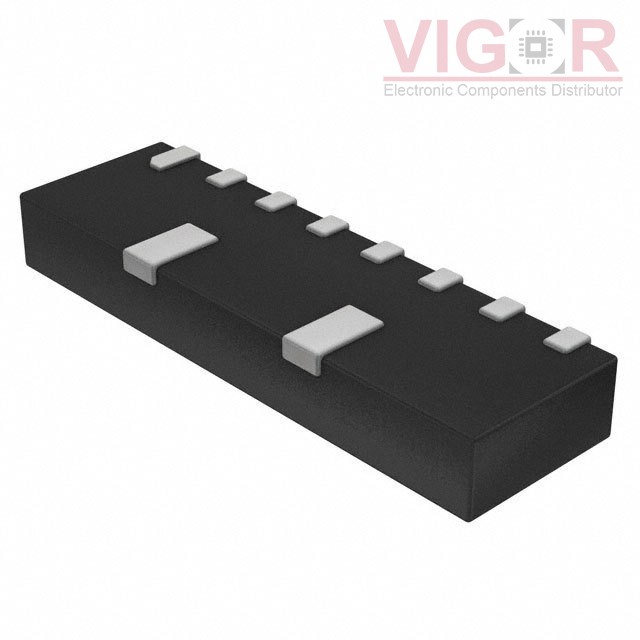

ESD7016MUTAG

Part No :: ESD7016MUTAG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TVS DIODE 5V 10V 8UDFN

Catalog: TVS - Diodes

DataSheet: ESD7016MUTAG PDF

Availability: 300893000 pieces

Current price of ESD7016MUTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD7016MUTAG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	8
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	5.5V
Voltage - Clamping (Max) @ Ipp:	10V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	USB
Capacitance @ Frequency:	0.15pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-UFSFN
Supplier Device Package:	8-UDFN (3.3x1.0)
