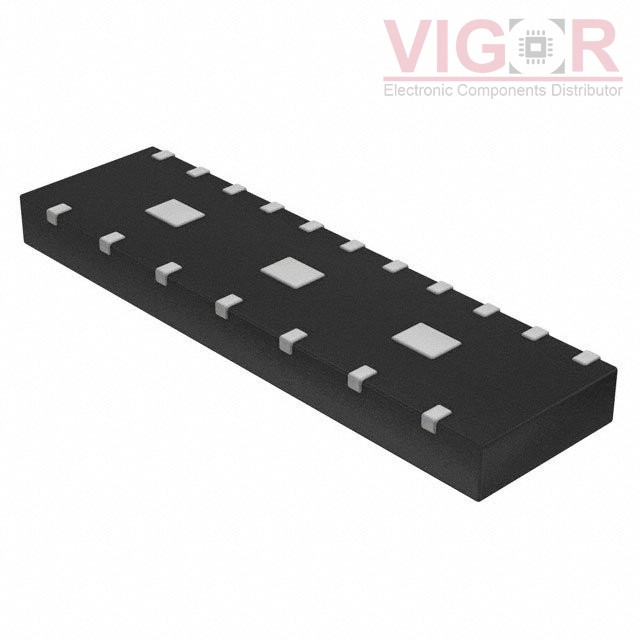

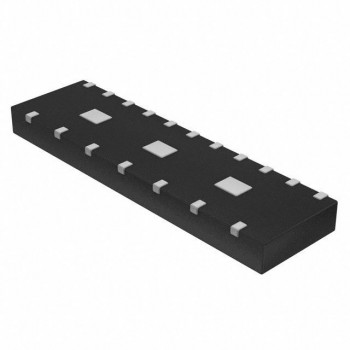

SZESD7008MUTAG

Part No :: SZESD7008MUTAG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TVS DIODE 5V 10V 18UDFN

Catalog: TVS - Diodes

DataSheet: SZESD7008MUTAG PDF

Availability: 119857000 pieces

Current price of SZESD7008MUTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SZESD7008MUTAG Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	8
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	5.5V
Voltage - Clamping (Max) @ Ipp:	10V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	Automotive, HDMI
Capacitance @ Frequency:	0.12pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	18-UFDFN Exposed Pad
Supplier Device Package:	18-UDFN (5.5x1.5)
