ESDBV5V0AE1-TP

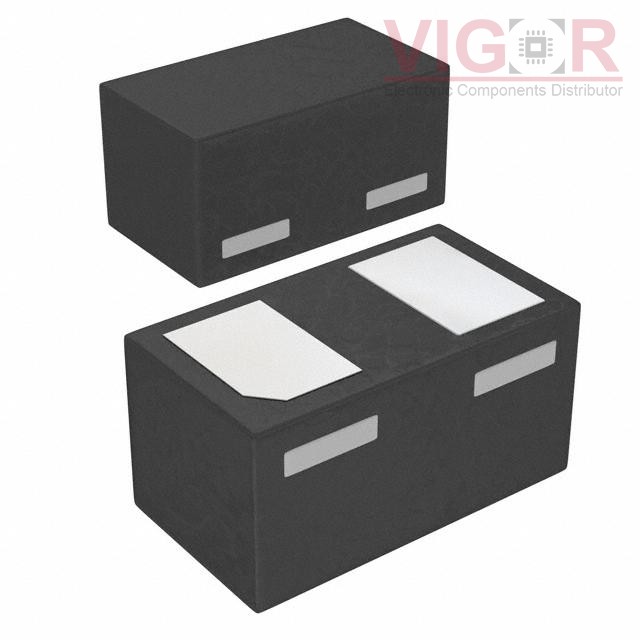

Image is for reference,
please contact us to get the real picture

Part No :: ESDBV5V0AE1-TP

Manufacturer: Micro Commercial Components (MCC)

Description: TVS DIODE 5V 13V 0201

Catalog: TVS - Diodes

DataSheet: ESDBV5V0AE1-TP PDF

Availability: 0 pieces

Unit Price: ~~$0.46000~~

Current price of ESDBV5V0AE1-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESDBV5V0AE1-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V (Max)
Voltage - Breakdown (Min):	5.6V
Voltage - Clamping (Max) @ Ipp:	13V
Current - Peak Pulse (10/1000µs):	4A (8/20µs)
Power - Peak Pulse:	52W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	2pF @ 1MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	0201
