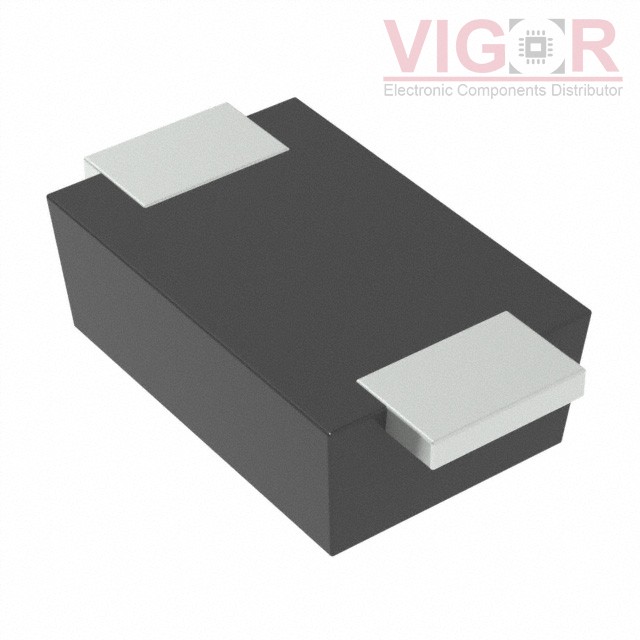

SJD12C36L01

Part No :: SJD12C36L01

Manufacturer: Yageo

Description: TVS DIODE

Catalog: TVS - Diodes

DataSheet: SJD12C36L01 PDF

Availability: 0 pieces

Current price of SJD12C36L01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SJD12C36L01 Specifications

Type	Description
Series:	SJD12A(C)XXXL01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	36V
Voltage - Breakdown (Min):	40V
Voltage - Clamping (Max) @ Ipp:	58.1V
Current - Peak Pulse (10/1000µs):	3.5A
Power - Peak Pulse:	200W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOD-123F
Supplier Device Package:	SOD-123S
