SMCJ78CAHR7G

Part No :: SMCJ78CAHR7G

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 1956126

Description: TVS DIODE 78V 126V DO214AB

Catalog: TVS - Diodes

DataSheet: SMCJ78CAHR7G PDF

Country of origin: -

Date code: -

SMCJ78CAHR7G Specifications

Type	Description
Series:	Automotive, AEC-Q101, SMCJ
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	78V
Voltage - Breakdown (Min):	86.7V
Voltage - Clamping (Max) @ Ipp:	126V
Current - Peak Pulse (10/1000µs):	12.5A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AB, SMC
Supplier Device Package:	DO-214AB (SMC)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 19 - May 23 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.3448~~	~~$0.34~~
1700	~~$0.3448~~	~~$586.13~~

Current price of SMCJ78CAHR7G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1.5KE400A

TVS DIODE 342V 548V DO201

1N6286A-E3/73

TVS DIODE 36.8V 59.3V 1.5KE

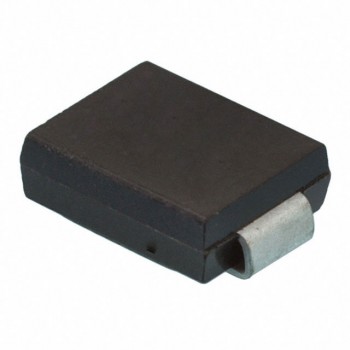

CD214L-T12CALF
