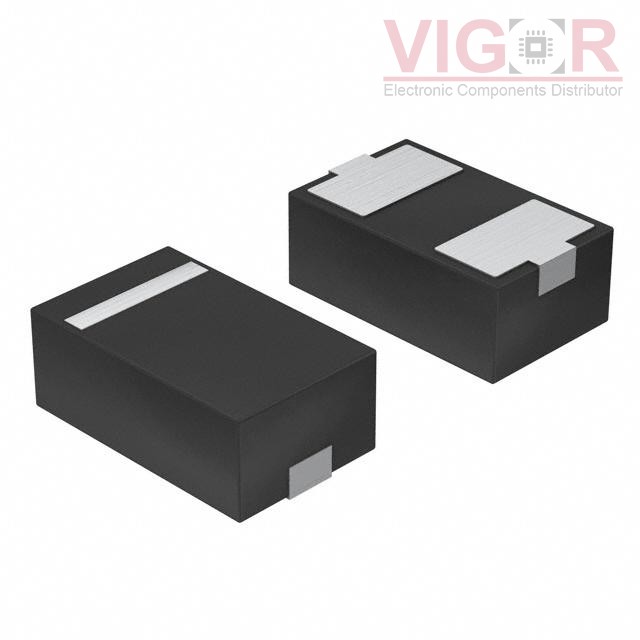

VESD12A1A-HD1-GS08

Part No :: VESD12A1A-HD1-GS08

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 12V 24V LLP1006-2L

Catalog: TVS - Diodes

DataSheet: VESD12A1A-HD1-GS08 PDF

Availability: 0 pieces

Current price of VESD12A1A-HD1-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VESD12A1A-HD1-GS08 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	12V (Max)
Voltage - Breakdown (Min):	13.5V
Voltage - Clamping (Max) @ Ipp:	24V
Current - Peak Pulse (10/1000µs):	8A (8/20µs)
Power - Peak Pulse:	200W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	54pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOD-882
Supplier Device Package:	LLP1006-2L

Please confirm the specifications of the products when ordering.
