SZ1SMA75AT3G

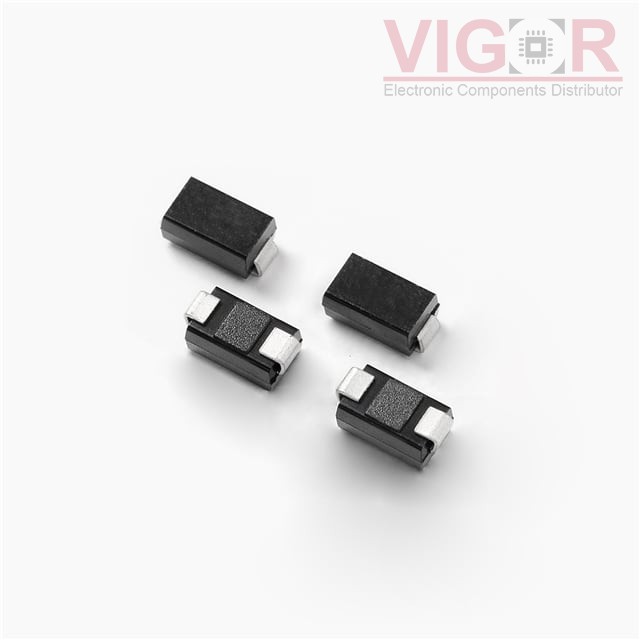

Image is for reference,
please contact us to get the real picture

Part No :: SZ1SMA75AT3G

Manufacturer: Wickmann / Littelfuse

Description: TVS DIODE 75V 121VC SMA

Catalog: TVS - Diodes

DataSheet: SZ1SMA75AT3G PDF

Availability: 5000 pieces

Unit Price: ~~$0.64000~~

Current price of SZ1SMA75AT3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SZ1SMA75AT3G Specifications

Type	Description
Series:	Automotive, AEC-Q101, SZ1SMA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	75V
Voltage - Breakdown (Min):	83.3V
Voltage - Clamping (Max) @ Ipp:	121V
Current - Peak Pulse (10/1000µs):	3.3A
Power - Peak Pulse:	400W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	180pF @ 1MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	SMA (DO-214AC)
