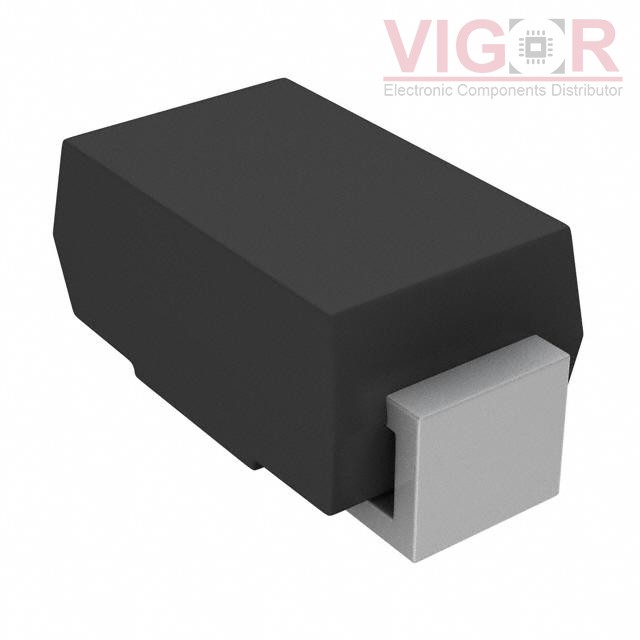

SMA5J12CHE3/5A

Part No :: SMA5J12CHE3/5A

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 4486713

Description: TVS DIODE 12V 22V DO214AC

Catalog: TVS - Diodes

DataSheet: SMA5J12CHE3/5A PDF

Country of origin: -

Date code: -

SMA5J12CHE3/5A Specifications

Type	Description
Series:	Automotive, AEC-Q101, TransZorb®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	12V
Voltage - Breakdown (Min):	13.3V
Voltage - Clamping (Max) @ Ipp:	22V
Current - Peak Pulse (10/1000µs):	22.7A
Power - Peak Pulse:	500W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	DO-214AC (SMA)
