VESD09A4A-HS4-GS08

VESD09A4A-HS4-GS08

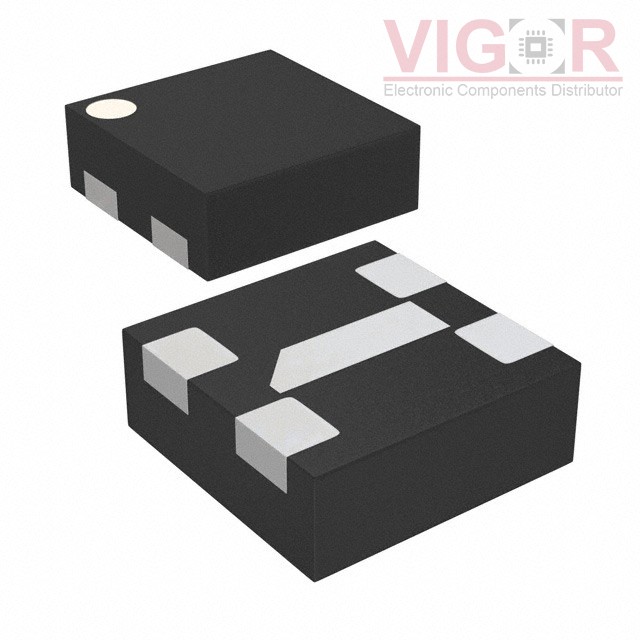

Image is for reference,
please contact us to get the real picture

Part No :

VESD09A4A-HS4-GS08

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 9V 23V LLP1010-5L
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Oct 14 - Oct 18 2025
DataSheet
VESD09A4A-HS4-GS08 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of VESD09A4A-HS4-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VESD09A4A-HS4-GS08 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):9V (Max)
Voltage - Breakdown (Min):11.2V
Voltage - Clamping (Max) @ Ipp:23V
Current - Peak Pulse (10/1000µs):1.5A (8/20µs)
Power - Peak Pulse:30W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:6.2pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:4-XFDFN Exposed Pad
Supplier Device Package:LLP1010-5L
