P6KA10AHE3/54

Part No :: P6KA10AHE3/54

Manufacturer: Vishay General Semiconductor – Diodes Division

VIGOR # :: 4490994

Description: TVS DIODE 8.55V 14.5V DO204AC

Catalog: TVS - Diodes

DataSheet: P6KA10AHE3/54 PDF

Country of origin: -

Date code: -

P6KA10AHE3/54 Specifications

Type	Description
Series:	Automotive, AEC-Q101, PAR®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	8.55V
Voltage - Breakdown (Min):	9.5V
Voltage - Clamping (Max) @ Ipp:	14.5V
Current - Peak Pulse (10/1000µs):	41.4A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 185°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-204AC, DO-15, Axial
Supplier Device Package:	DO-204AC (DO-15)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 03 - Feb 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of P6KA10AHE3/54 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LCE20-E3/73

TVS DIODE 20V 35.8V 1.5KE

1N6379RL4G

TVS DIODE 22V 37.5V AXIAL

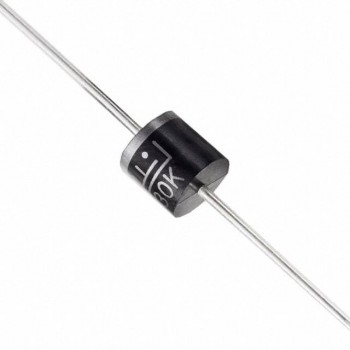

15KP64A
