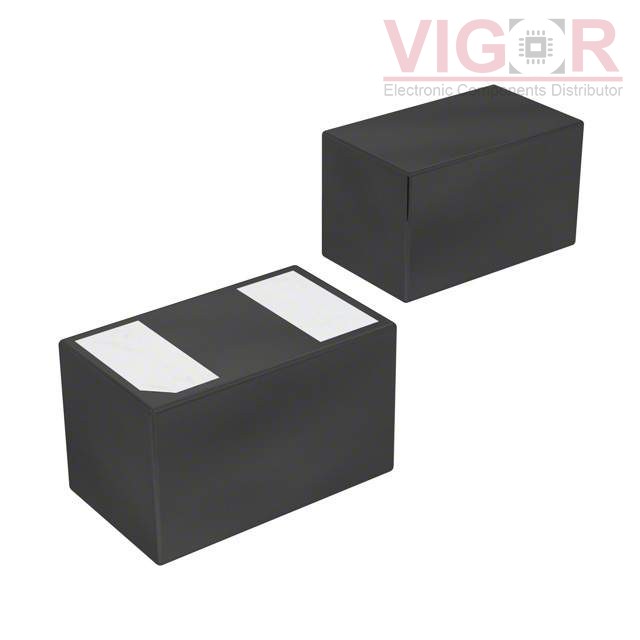

LXES03BAA1-110

Part No :: LXES03BAA1-110

Manufacturer: TOKO / Murata

VIGOR # :: 4496483

Description: TVS DIODE 5VWM SMD

Catalog: TVS - Diodes

DataSheet: LXES03BAA1-110 PDF

Country of origin: -

Date code: -

LXES03BAA1-110 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	5V
Voltage - Breakdown (Min):	5.6V
Voltage - Clamping (Max) @ Ipp:	-
Current - Peak Pulse (10/1000µs):	-
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	-
