15KP22A

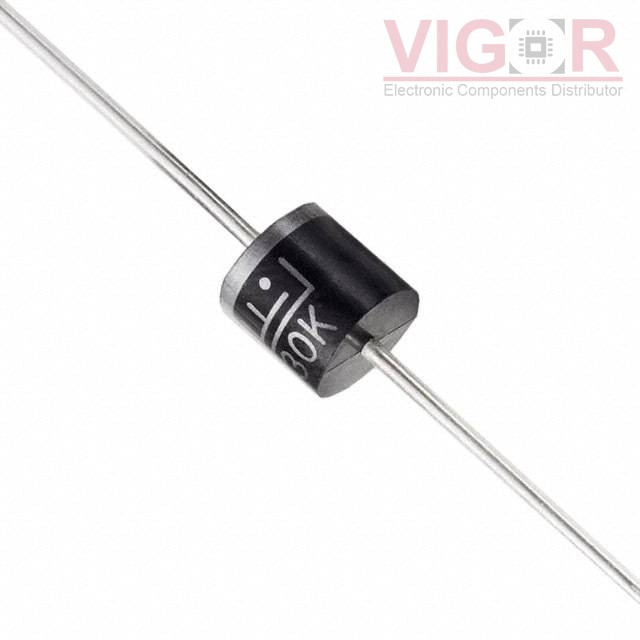

Product image
Product thumb
Part No :

15KP22A

Manufacturer
Wickmann / Littelfuse
VIGOR # :

4499322

Description
TVS DIODE 22V 37.1V P600
Catalog
TVS - Diodes
DataSheet
15KP22A PDF
Country of origin
-
Date code
-
ads
15KP22A Specifications
Type Description
Series:15KP
Package:Bulk
Part Status:Obsolete
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:37.1V
Current - Peak Pulse (10/1000µs):404A
Power - Peak Pulse:15000W (15kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:P600, Axial
Supplier Device Package:P600
