SA13CHE3/54

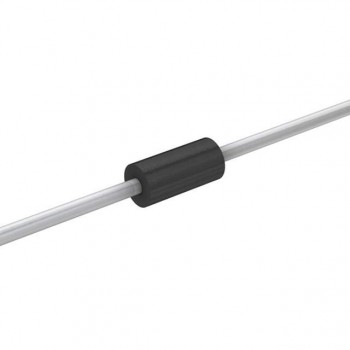

Image is for reference,
please contact us to get the real picture

Part No :: SA13CHE3/54

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 13V 23.8V DO204AC

Catalog: TVS - Diodes

DataSheet: SA13CHE3/54 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SA13CHE3/54 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA13CHE3/54 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TransZorb®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	13V
Voltage - Breakdown (Min):	14.4V
Voltage - Clamping (Max) @ Ipp:	23.8V
Current - Peak Pulse (10/1000µs):	21A
Power - Peak Pulse:	500W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-204AC, DO-15, Axial
Supplier Device Package:	DO-204AC (DO-15)
