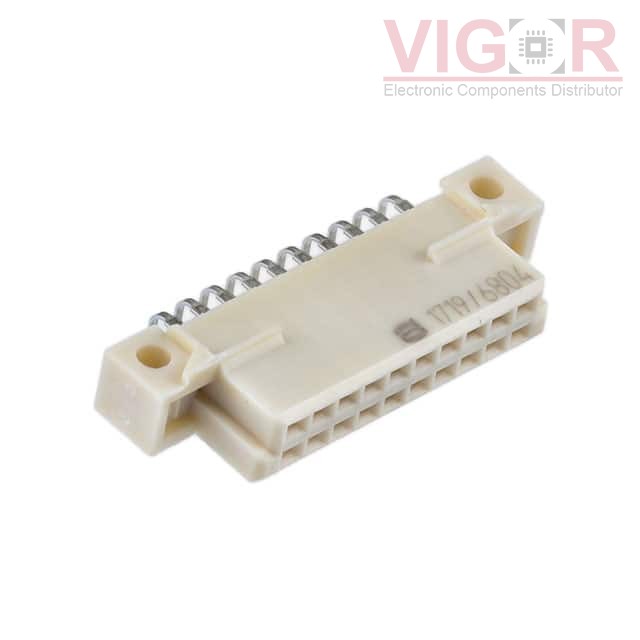

09752206804

Part No :: 09752206804

Manufacturer: HARTING

Description: DIN 3Q FEMALE ANGLED 20PIN PL2

Catalog: Backplane Connectors - DIN 41612

DataSheet: 09752206804 PDF

Availability: 50 pieces

Current price of 09752206804 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

09752206804 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Female Sockets
Number of Positions:	20
Number of Positions Loaded:	All
Pitch:	0.100" (2.54mm)
Number of Rows:	2
Style:	3Q
Level, Class:	1
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Features:	-
Contact Finish:	Gold-Palladium
Contact Finish Thickness:	-
