0765001127

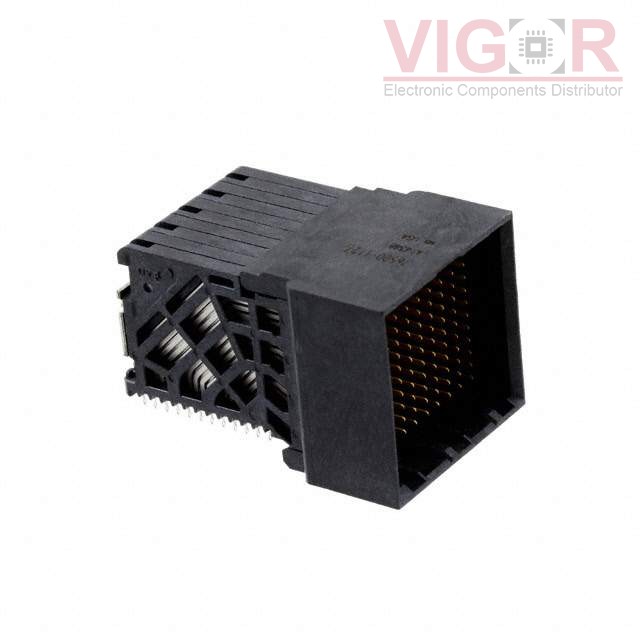

Image is for reference,
please contact us to get the real picture

Part No :: 0765001127

Manufacturer: Woodhead - Molex

VIGOR # :: 3266012

Description: CONN HDR IMPACT 120POS EDGE MNT

Catalog: Backplane Connectors - Specialized

DataSheet: 0765001127 PDF

Current price of 0765001127 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0765001127 Specifications

Type	Description
Series:	Impact 76500
Package:	Tray
Part Status:	Active
Connector Usage:	-
Connector Type:	Header, Male Pins
Connector Style:	Impact
Number of Positions:	120
Number of Positions Loaded:	All
Pitch:	-
Number of Rows:	12
Number of Columns:	10
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	40 Differential Pairs
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black

Please confirm the specifications of the products when ordering.
