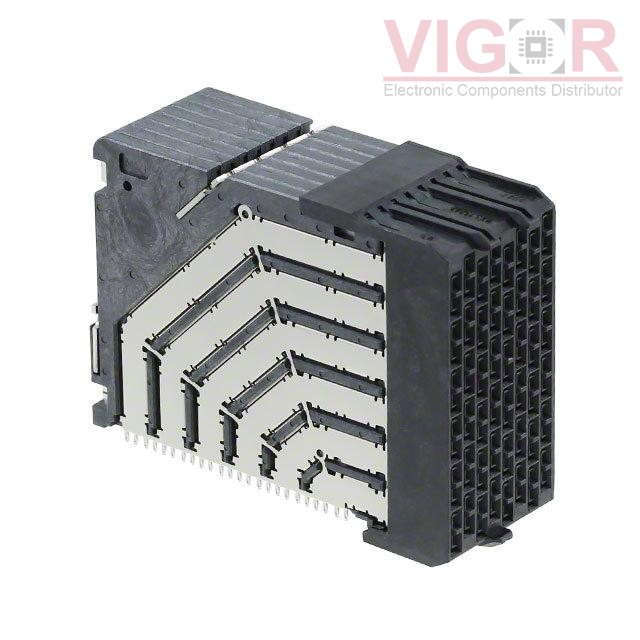

1714001038

Part No :: 1714001038

Manufacturer: Woodhead - Molex

Description: CONN RCPT IMPEL PCB

Catalog: Backplane Connectors - Specialized

DataSheet: 1714001038 PDF

Availability: 101 pieces

Current price of 1714001038 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1714001038 Specifications

Type	Description
Series:	Impel 171400
Package:	Tray
Part Status:	Active
Connector Usage:	Daughtercard
Connector Type:	Receptacle, Female Sockets and Blade Sockets
Connector Style:	Impel™
Number of Positions:	-
Number of Positions Loaded:	All
Pitch:	0.075" (1.90mm)
Number of Rows:	12
Number of Columns:	8
Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	48 Differential Pairs
Features:	Shielded
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black

Please confirm the specifications of the products when ordering.
