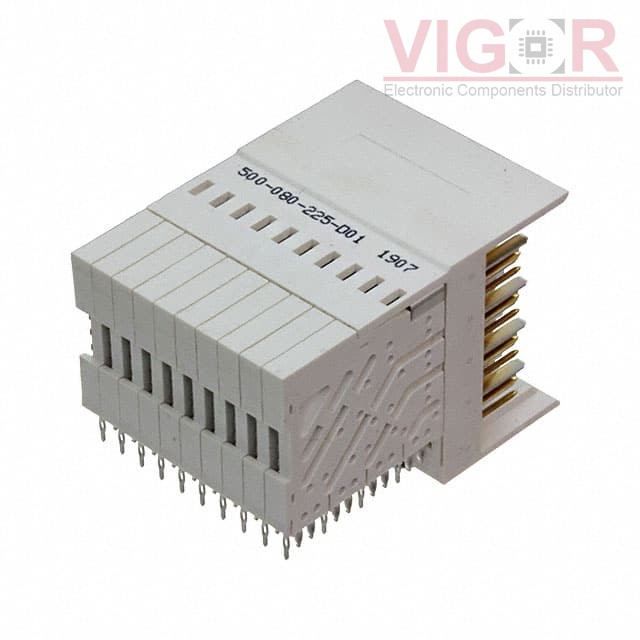

500-080-225-D01

Part No :: 500-080-225-D01

Manufacturer: EDAC Inc.

Description: ZD CONNECTOR, 2.0MM HARD METRICM

Catalog: Backplane Connectors - Specialized

DataSheet: 500-080-225-D01 PDF

Availability: 54 pieces

Current price of 500-080-225-D01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

500-080-225-D01 Specifications

Type	Description
Series:	500
Package:	Tube
Part Status:	Obsolete
Connector Usage:	-
Connector Type:	Header, Male Pins and Blades
Connector Style:	ZD
Number of Positions:	80
Number of Positions Loaded:	All
Pitch:	0.098" (2.50mm)
Number of Rows:	8
Number of Columns:	10
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	40 Differential Pairs
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Color:	-

Please confirm the specifications of the products when ordering.
