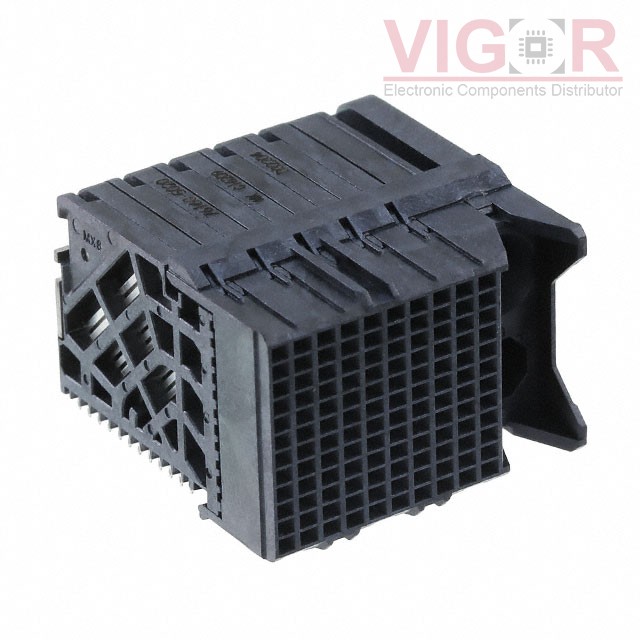

0761605020

Part No :: 0761605020

Manufacturer: Woodhead - Molex

Description: CONN RCPT IMPACT 120POS EDGE MNT

Catalog: Backplane Connectors - Specialized

DataSheet: 0761605020 PDF

Availability: 2 pieces

Current price of 0761605020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0761605020 Specifications

Type	Description
Series:	Impact 76160
Package:	Tray
Part Status:	Active
Connector Usage:	-
Connector Type:	Receptacle, Female Sockets
Connector Style:	Impact, Guide Right
Number of Positions:	120
Number of Positions Loaded:	All
Pitch:	0.053" (1.35mm)
Number of Rows:	12
Number of Columns:	10
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	40 Differential Pairs
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black
