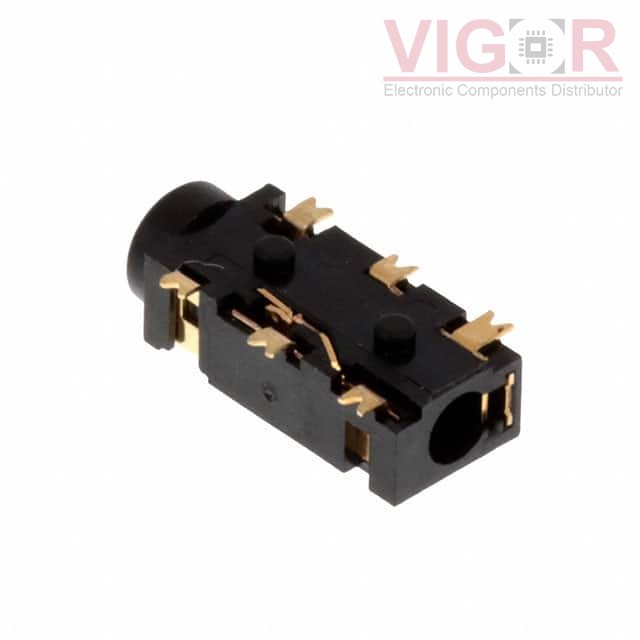

STX-25427-6N-TR

Part No :: STX-25427-6N-TR

Manufacturer: Kycon

Description: CONN JACK STEREO 2.5MM R/A SMT

Catalog: Barrel - Audio Connectors

DataSheet: STX-25427-6N-TR PDF

Availability: 6798 pieces

Unit Price: ~~$1.52000~~

Current price of STX-25427-6N-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STX-25427-6N-TR Specifications

Type	Description
Series:	STX-25427
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter:	0.102" (2.60mm)
Number of Positions/Contacts:	4 Conductors, 6 Contacts
Internal Switch(s):	Two Switches
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Operating Temperature:	-25°C ~ 70°C

Please confirm the specifications of the products when ordering.
